ATEX Hand lamp EX class TIHA
ATEX Hand lamp EX Class
Explosion-proof (Ex-proof) hand lamps are specialized, portable lighting devices designed to operate safely in hazardous environments where flammable gases, vapors, or combustible dusts are present. These tools are engineered to contain internal sparks or high temperatures, preventing them from igniting the surrounding atmosphere. [1, 2, 3]
Key Features & Specifications
- Safety Certifications: Certified for ATEX/IECEx Zones 1, 2 (Gas) and 21, 22 (Dust), with some models suitable for Zone 0/20.
- Rugged Construction: Often feature polycarbonate protection tubes, neoprene handles, and IP66/67/68 waterproof/dustproof ratings.
- Lighting Technology: Almost exclusively use LED technology for low energy consumption and high light output (e.g., 350+ lumens).
- Voltage Options: Available in various voltages, including low voltage (12V, 24V, 42V) for confined space entry and standard voltages (110V, 230V).
- Portability: Include features like magnetic bases, swivel hooks, belt clips, and rechargeable batteries. [1, 2, 3, 4, 5, 6, 7, 8, 9]
Common Applications
- Oil & Gas/Petrochemical: Tank inspections, refinery maintenance, and offshore rig operations.
- Confined Spaces: Safe illumination for vessels and tanks.
- Emergency Services: Emergency response in areas with leakage risks.
Any questions?
Ex MP 32R
Explosion Proof Torch
The ExMP32R is a rechargeable intrinsically safe explosion-proof torch, with 90° rotational lamp head. It is suitable for Zone 1/2 and Zone 21/22. The work mode provides spotlight and floodlight, and the strong mode turnsR on both spotlight and floodlight simultaneously. The shell is made of high performance Nylon, which is permanently anti-static, lightweight, drop-resistant, corrosion-resistant, and oil-resistant. It has an IP66/67 protection level, making it your safe and reliable explosion-proof lighting equipment.

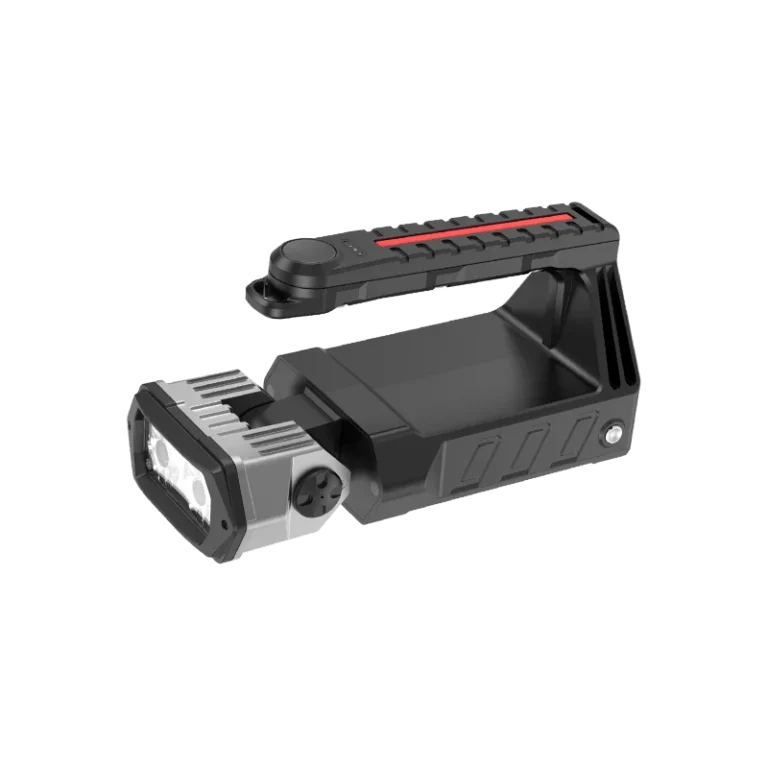

Ex MP 52R
Explosion Proof Rechargeable Handlamp
ExMP52R is a rechargeable intrinsically safe explosion-proof handlamp for Zone 1/2 and Zone 21/22. The lamp head can be bent 180°. The tail has a positioning light, and 5 colors can be customized. The shell is made of high performance Nylon, which has permanent anti-static, lightweight, drop-resistant, corrosion-resistant, oil-resistant, and other characteristics, and has an IP66/67 protection level. It is a safe and reliable explosion-proof lighting equipment for use in hazardous environments.
Ex MP51R
Explosion Proof Rechargeable Handlamp
ExMP51R is a rechargeable intrinsically safe explosion-proof handlamp for Zone 1/2 and Zone 21/22. The lamp head can be bent 90°. It can quickly switch between 4 light colors by rotating the knob. The shell is made of high performance Nylon, which has permanent anti-static, lightweight, easy-to-carry, corrosion-resistant, and oil-resistant characteristics. It also has an IP66/67 protection level, making it safe and reliable in harsh environments. It is an explosion-proof lighting device that you can trust in dangerous areas.

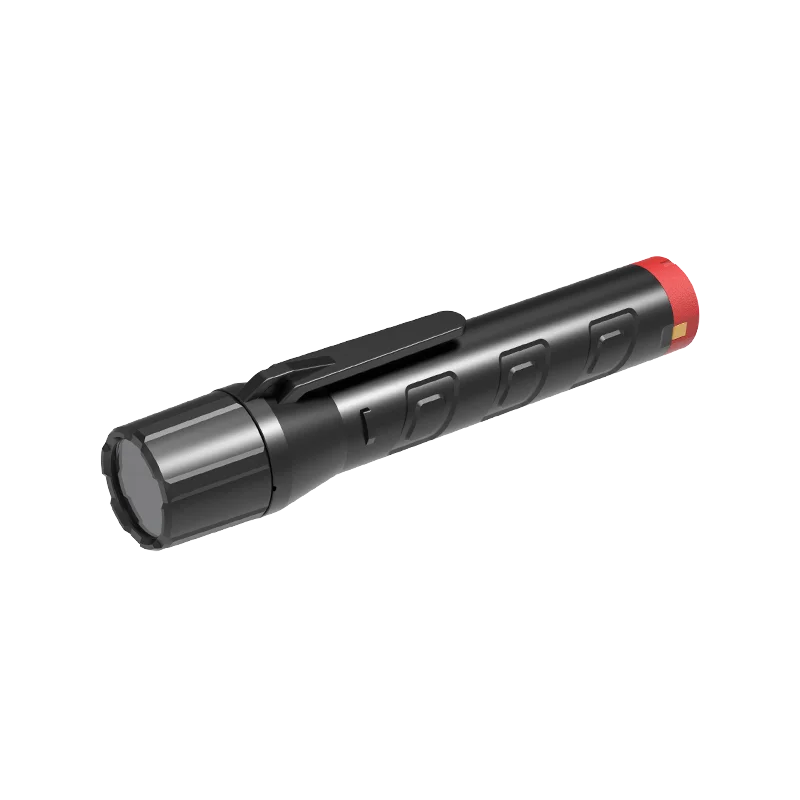

Ex MP21R
ExMP21R
Explosion Proof Torch
ExMP21R is a rechargeable intrinsically safe explosion-proof flashlight, suitable for various hazardous environments, such as Zone 1/2 and Zone 21/22. The shell is made of high performance Nylon, which has permanent anti-static, lightweight, drop-resistant, anti-UV, aging-resistant, corrosion-resistant, and oil-resistant characteristics. It has an IP66/67 protection level, excellent optical design, and many user-friendly function designs, and integrated charging design, making it a safe and reliable explosion-proof lighting equipment.
Ex MP21N
Explosion Proof Torch
ExMP21N is an intrinsically safe explosion-proof torch, suitable for Zone 0/1/2 and Zone 21/22, powered by 2 AA alkaline batteries. The shell is made of high performance Nylon, which has permanent anti-static, lightweight, drop-resistant, corrosion-resistant, oil-resistant, and anti-aging characteristics. It has an IP66/67 protection level and can achieve headlamp lighting function through different accessories. It is a safe and reliable explosion-proof lighting equipment when working in hazardous areas.

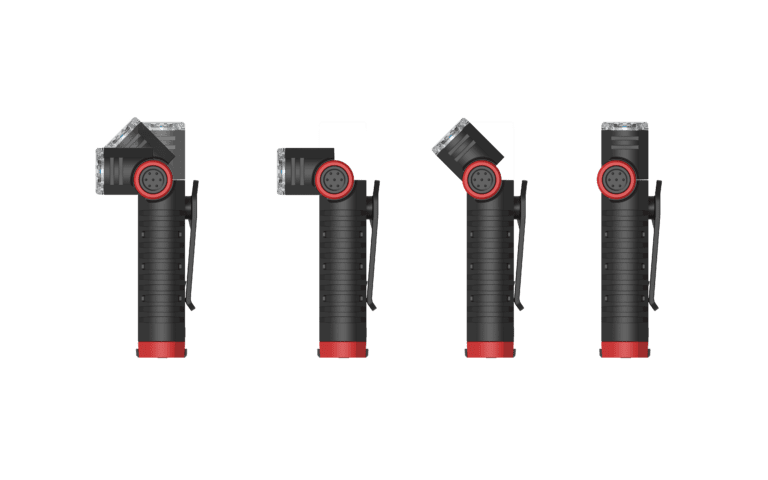

EX MP32N
Explosion Proof Torch
The ExMP32N is a type of intrinsically safe explosion-proof torch with a 90° bendable head. It is powered by 3 AA alkaline batteries and is suitable for Zone 0/1/2 and Zone 21/22. The work light mode can operate in either floodlight or spotlight mode, while two light sources combined to get a strong light mode. The shell is made of high performance Nylon, featuring permanent anti-static, lightweight, drop-resistant, corrosion-resistant, anti-aging properties, as well as an IP66/67 protection level. It is a reliable explosion-proof lighting device for you in hazardous areas.

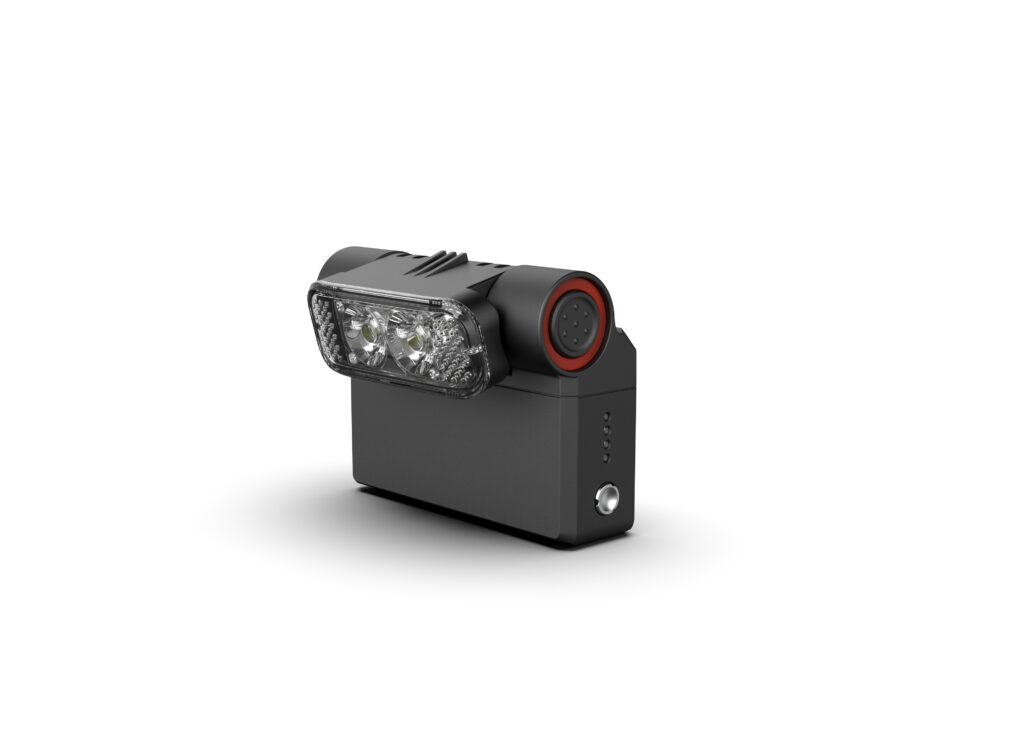

EX MP61R-1
Explosion Proof Headtorch
ExMP61R-1 is a rechargeable intrinsically safe explosion-proof headtorch that uses a 3.6V 3350mAh lithium battery. It is suitable for coal mine environments, Zone 0/1/2, and Zone 21/22. The headtorch can be bent up to 108°, providing more lighting angle options. The body is made of high performance Nylon, which has permanent anti-static, lightweight, corrosion-resistant, oil-resistant, and anti-aging properties. It has an IP66/67 protection rating, making it suitable for use in harsh environments. It is a safe and reliable explosion-proof lighting device.

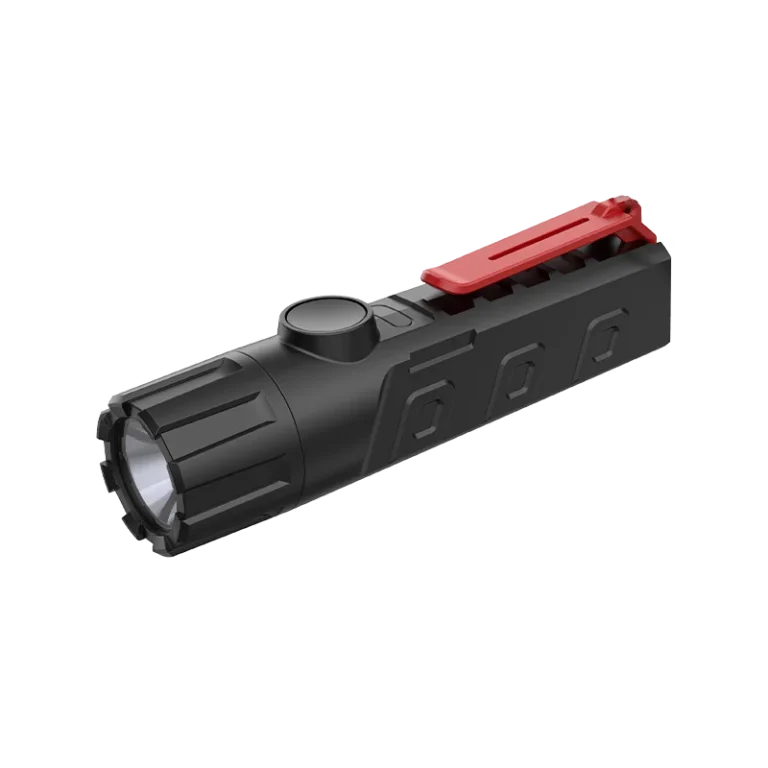

EX MP31N
Explosion Proof Torch
ExMP31N is an intrinsically safe explosion-proof torch that uses 3 AA alkaline batteries for power. It is convenient, quick, and suitable for Zone 0/1/2 and Zone 21/22. The shell is made of high performance Nylon and has many user-friendly designs, as well as permanent anti-static, lightweight, shock-resistant, corrosion-resistant, oil-resistant, and anti-aging characteristics, and an IP66/67 protection level. The lithium battery module of ExMP31R can be used to switch between two power supply modules.

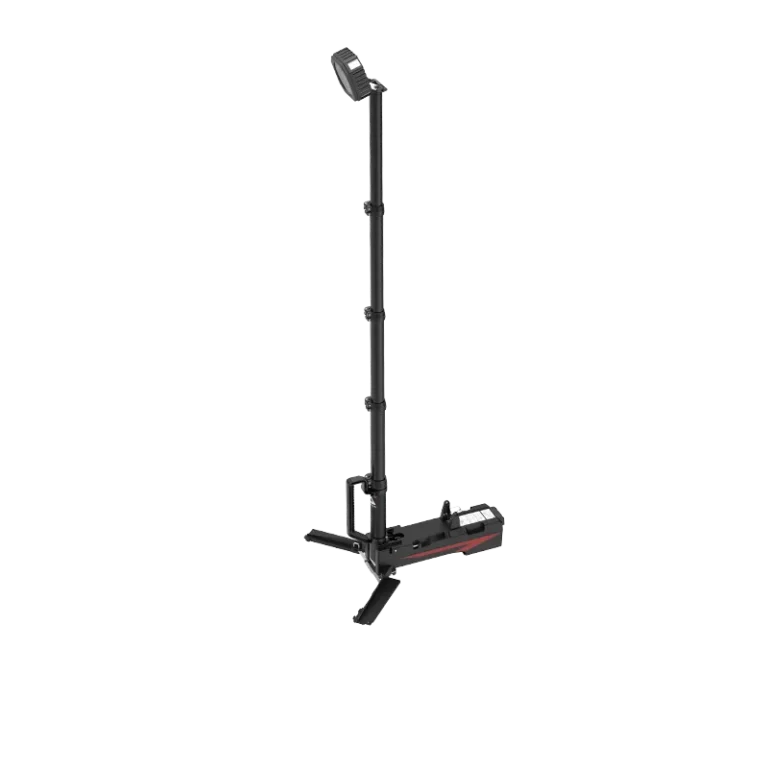

EX MP81R
Explosion Proof Mobile Light
The ExMP81R is an explosion-proof mobile lighting tower for demanding environments. ATEX/IECEx certified for Class II Zone 1/2 & Class III Zone 21/22 areas, with IP66 rating and wide -20°C to +55°C operating range.
Features rapid ground deployment, 5500 lumens max output, and covers 200 ㎡. Its lamp head offers 300° horizontal and 115° vertical adjustment, plus 2150mm height extension.
Provides up to 18 hours runtime on a 7-hour charge. Your reliable, safe, wide-coverage lighting solution for hazardous areas.

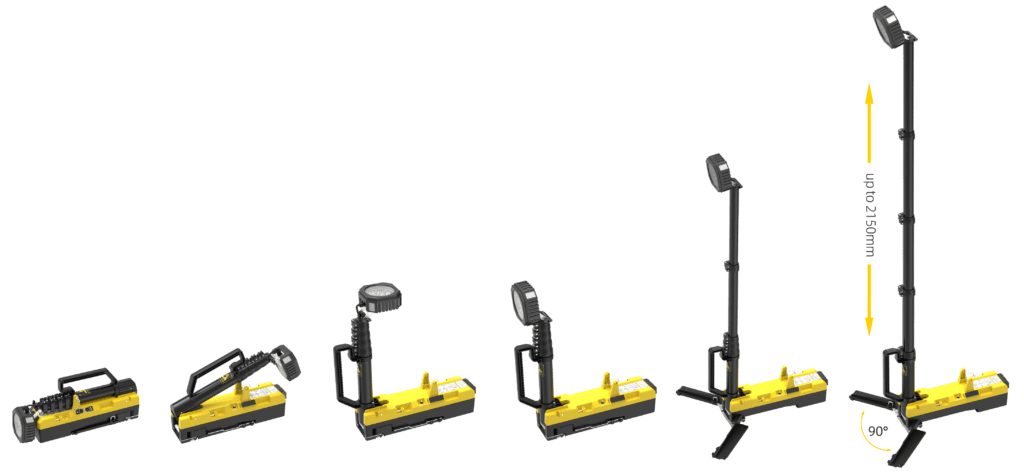

IN MP81R
Industrial Mobile Light Tower
INMP81R is a rechargeable industrial mobile light tower, designed for a multitude of professional contexts, spanning maintenance, disaster relief, emergency response, construction and incident management. It features with horizontally and vertically rotational swive neck to shine light into the most out-of-the-way places. It’s extendable to full height 2150mm with the stabilization legs fully deployed and locked within seconds, to increase the illumination area and achieve regional lighting functionality. Use it to light the way to your worksite and set it up quickly to illuminate the entire area.

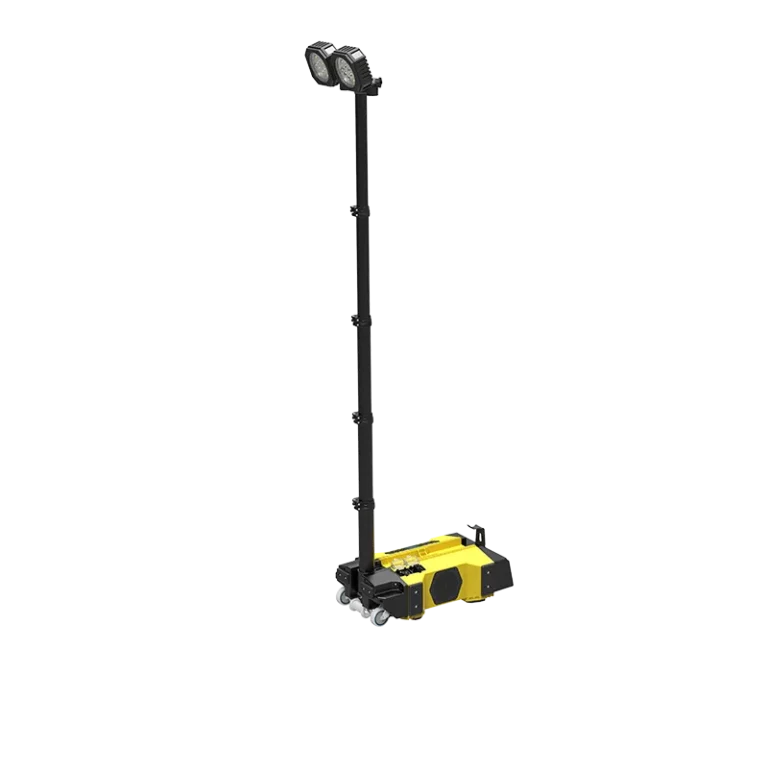

IN MP82R
Industrial Mobile Light Tower
INMP82R is a rechargeable industrial mobile light tower, designed for a multitude of professional contexts, spanning maintenance, disaster relief, emergency response, construction and incident management. It features with horizontally and vertically rotational swive neck to shine light into the most out-of-the-way places. It’s extendable to full height 2230mm with the stabilization legs fully deployed and locked within seconds, to increase the illumination area and achieve regional lighting functionality. Use it to light the way to your worksite and set it up quickly to illuminate the entire area.
